API Requests

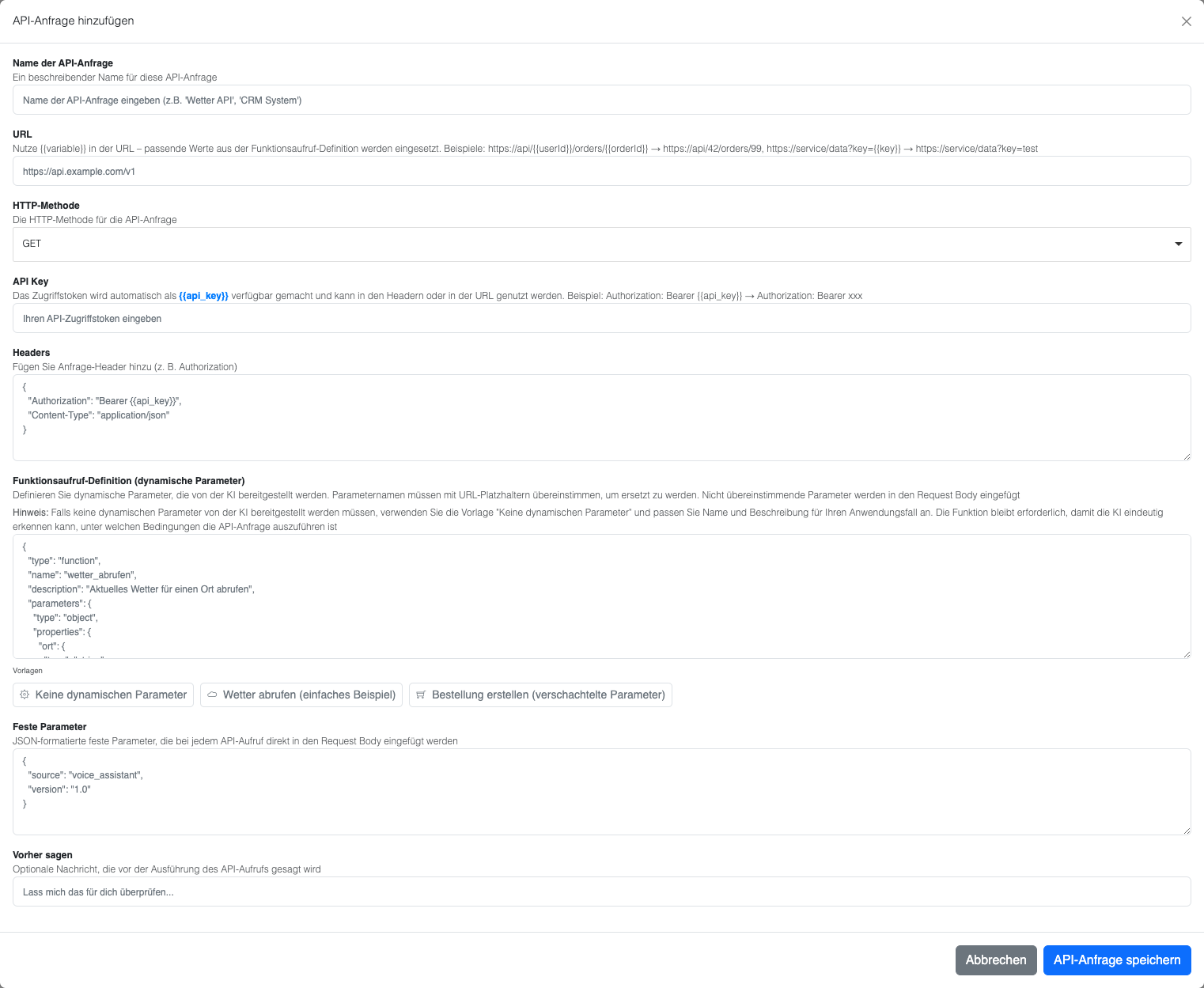

You can create API request definitions in the API Requests tab of the Voice Wizard. Click “Add API request” and you will see the following input form with the fields explained below.

Form fields explained

API request name

A descriptive name for your API request (e.g. “Create product order”)

URL

The API endpoint URL. You can use placeholders like {{userId}}, which are replaced with values from your dynamic function parameters.

Example: https://api.shop.com/orders/{{userId}}

HTTP method

Choose the HTTP method for your request (GET, POST, PUT, DELETE, etc.)

API key

Your authentication token. It automatically replaces all {{api_key}} placeholders in your URL or headers.

Headers

HTTP headers for your request in JSON format:

{
  "Authorization": "Bearer {{api_key}}",
  "Content-Type": "application/json"
}

{{api_key}} is replaced with your API key

Function definition (dynamic parameters)

Define the parameters that users can pass when calling your function:

{
  "type": "function",
  "name": "place_order",
  "description": "Bestellt ein Produkt für einen Kunden",
  "parameters": {
    "type": "object",
    "properties": {
      "userId": {
        "type": "string",
        "description": "Kunden-Benutzer-ID"
      },
      "orderDetails": {
        "type": "object",
        "properties": {
          "product": {"type": "string"},
          "quantity": {"type": "number"}
        }
      }
    }
  }
}

These parameters will:

Replace matching placeholders in the URL and headers
All dynamic parameters that do not match any placeholder are added to the request body
Works with nested objects — e.g. the orderDetails object is preserved in the body

Fixed parameters

Static values that are always included in every request:

{
  "storeId": "STORE_123",
  "paymentMethod": "credit_card",
  "currency": "USD"
}

These are:

Always added to the request body unchanged
They do NOT replace placeholders in headers or the URL

Variables

Variables expose values from the API response as {{tool.<tool-name>.<variable>}} and pass them to other tools or to post-processing — server-side, so the value never passes through the AI. This lets you chain several API requests together. Example: the kunde_suchen tool returns an id, and the bestellungen_abrufen tool then uses it to fetch the customer’s orders.

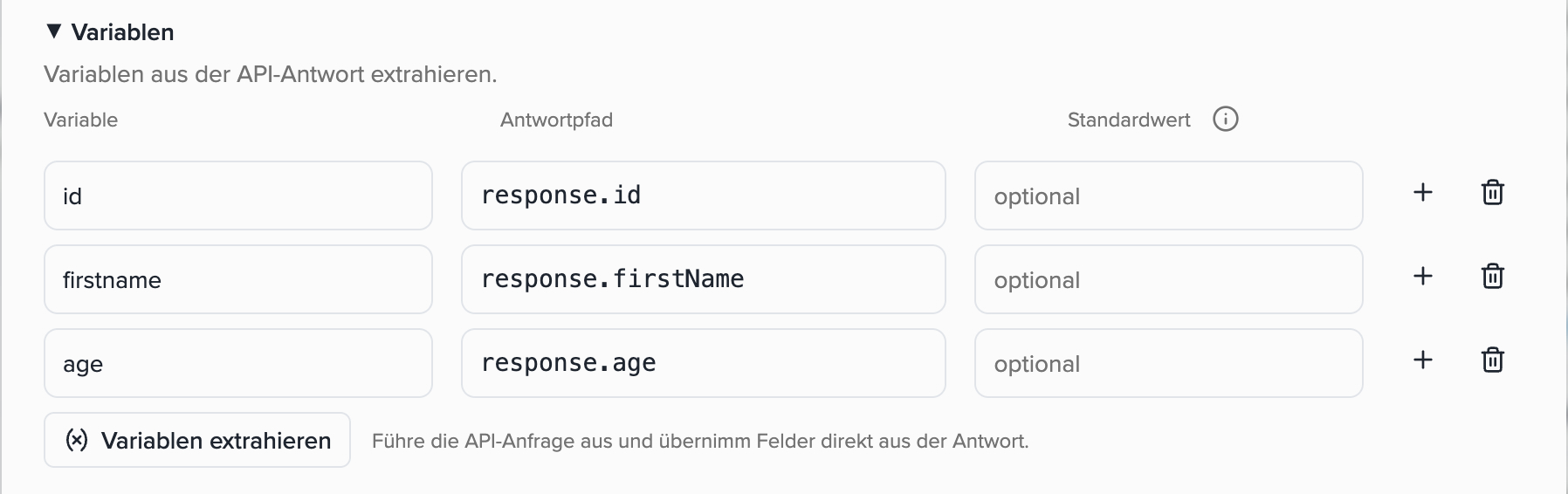

Define variables

Expand the “Variablen” section in the tool and fill in, per row:

Variable – the name you reference the value by (e.g. id).
Response path – the path to the value in the response in dot notation, starting with response. (e.g. response.id or response.data.id).
Default value (optional) – sent when the value is missing from the response.

Reference the variable as {{tool.<tool-name>.<variable>}}, e.g. {{tool.kunde_suchen.id}}.

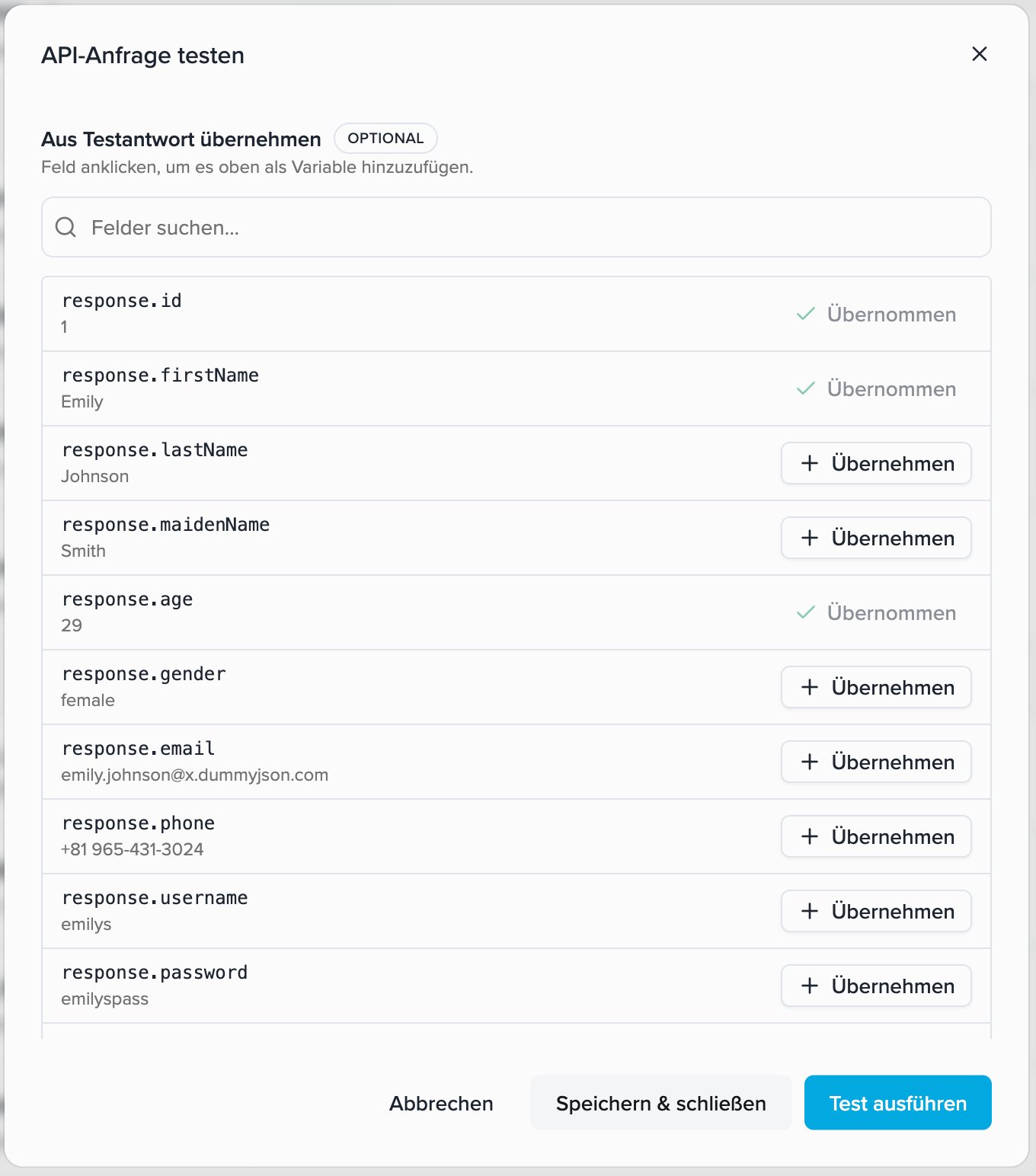

Capture fields from the test response (optional)

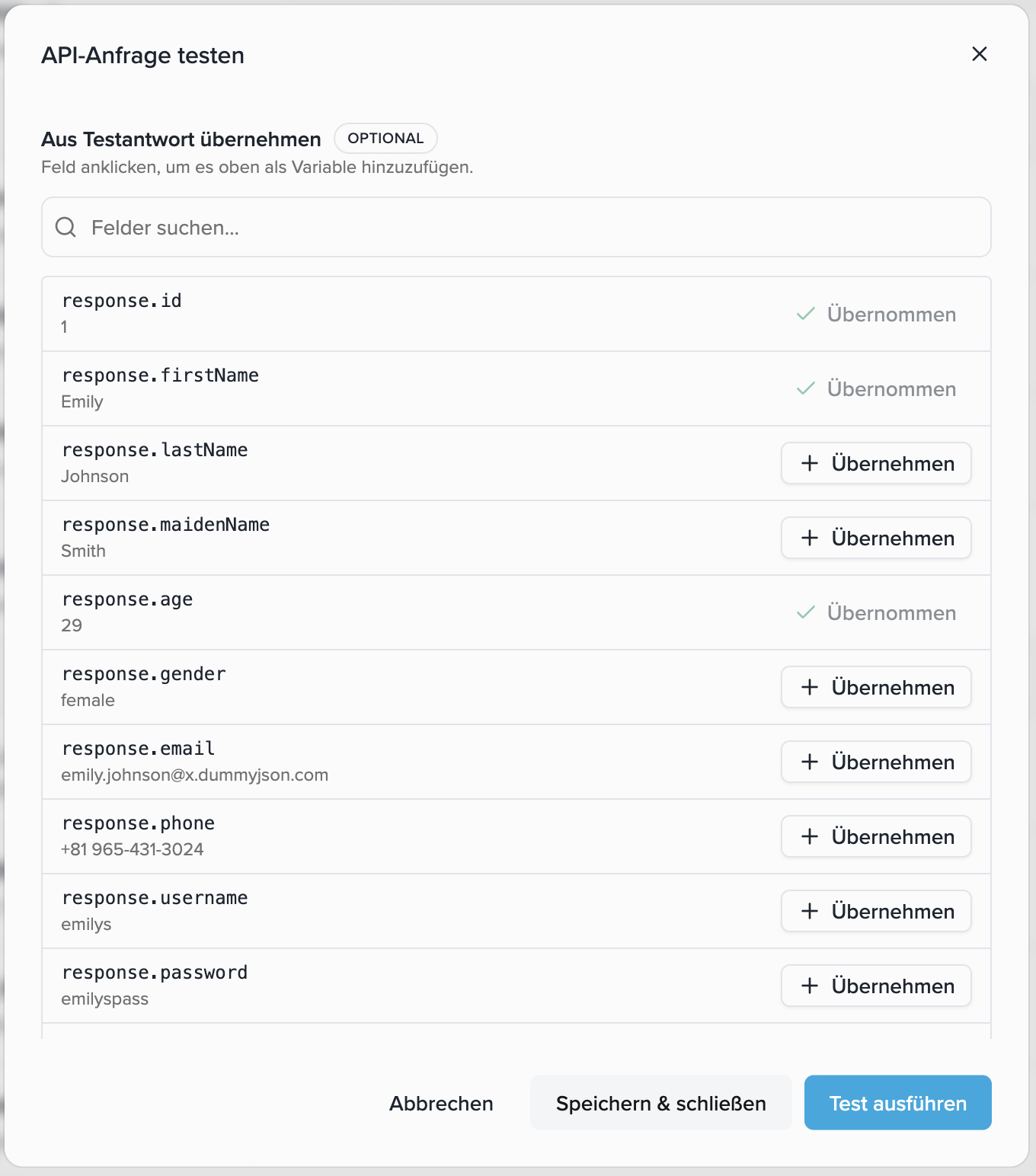

Instead of typing the path manually, click “Variablen extrahieren”: the API is tested once and you capture fields directly from the real response. Use the search to find the right field quickly.

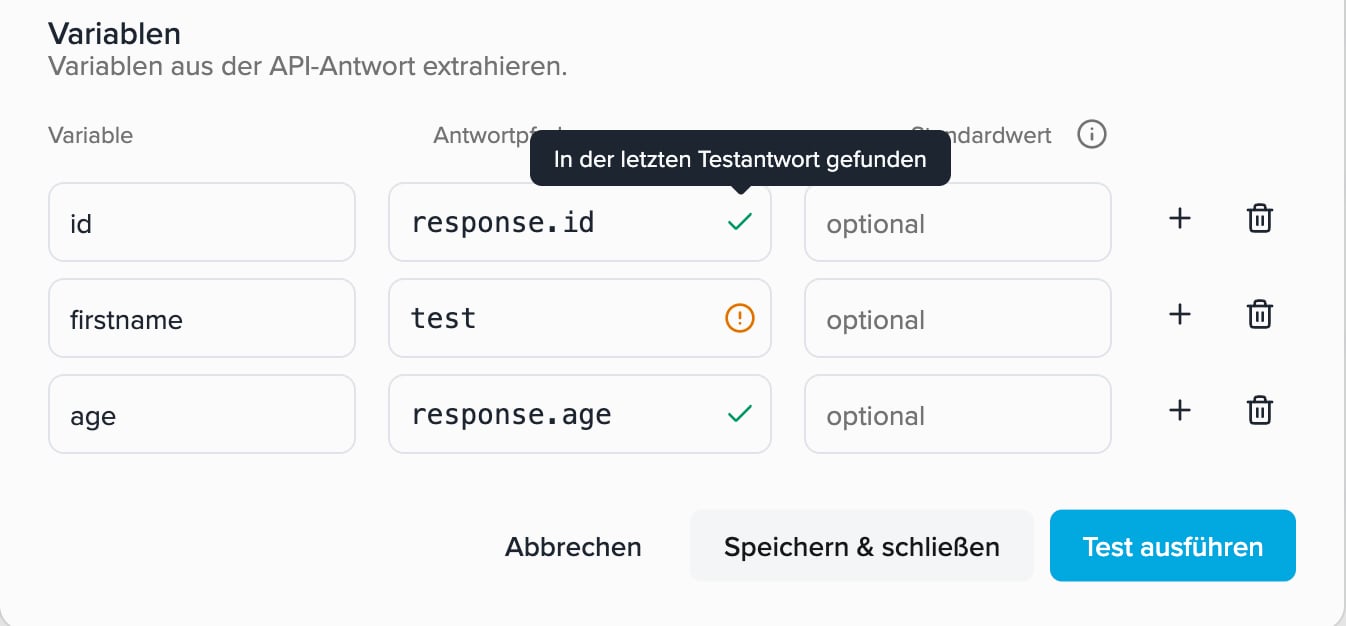

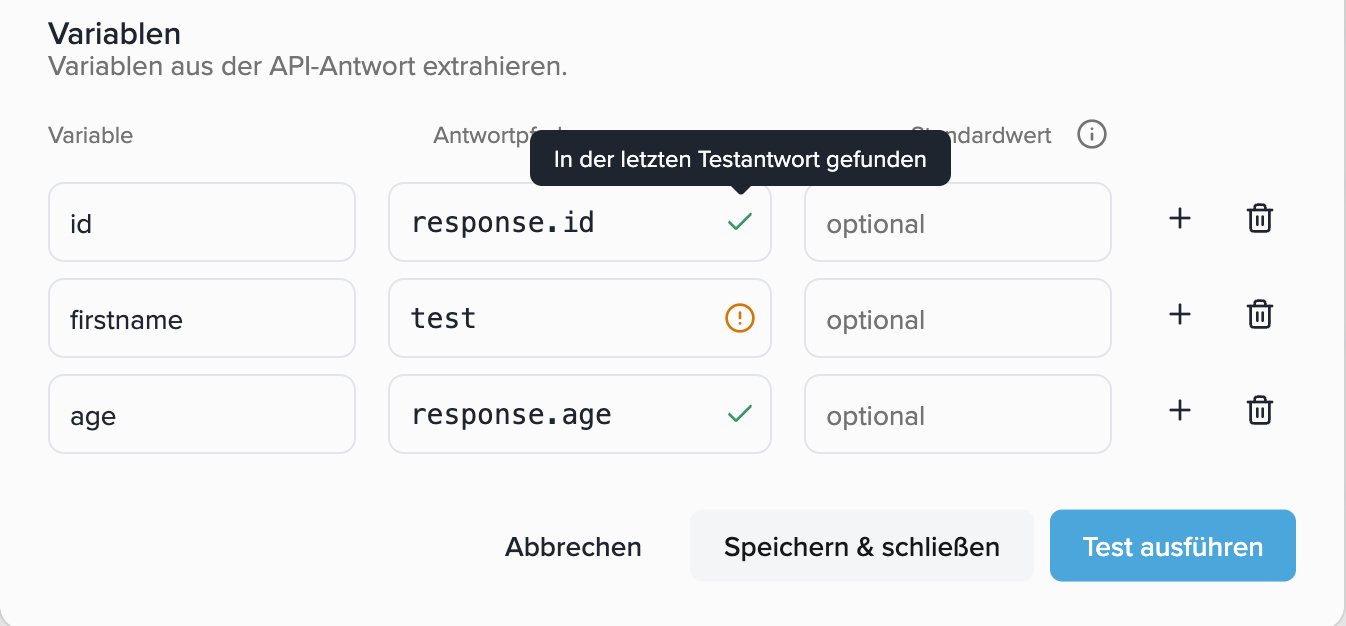

A green check means the path was found as a single value in the last test response:

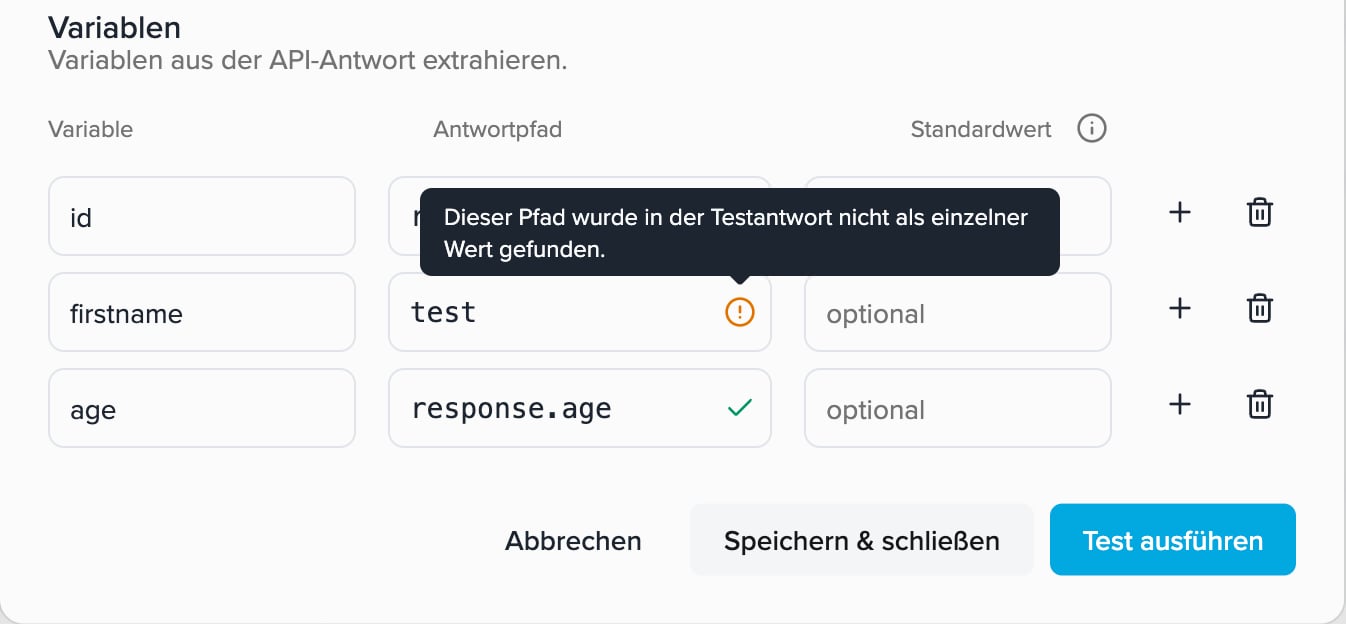

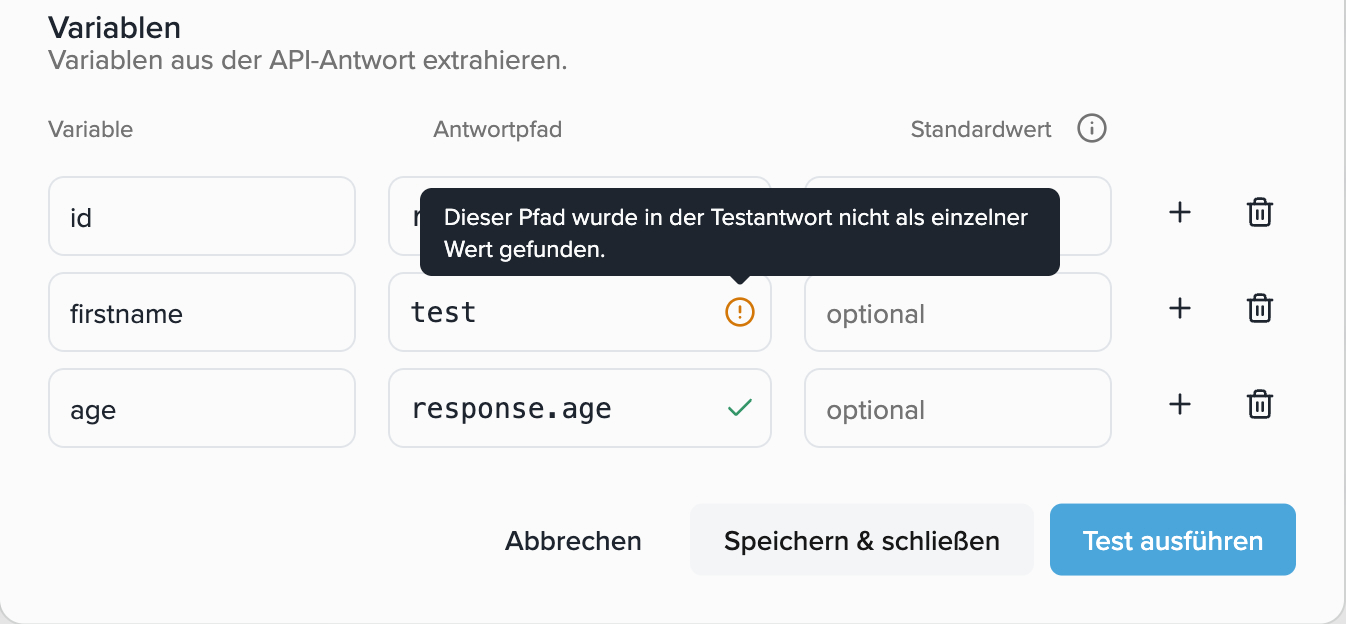

An amber icon means it wasn’t found there as a single value (e.g. a typo or a wrong path):

Use the variable in another tool

Use the variable in another API tool’s URL, headers or fixed parameters (request body). As soon as you type {{, a dropdown appears to pick the variable.

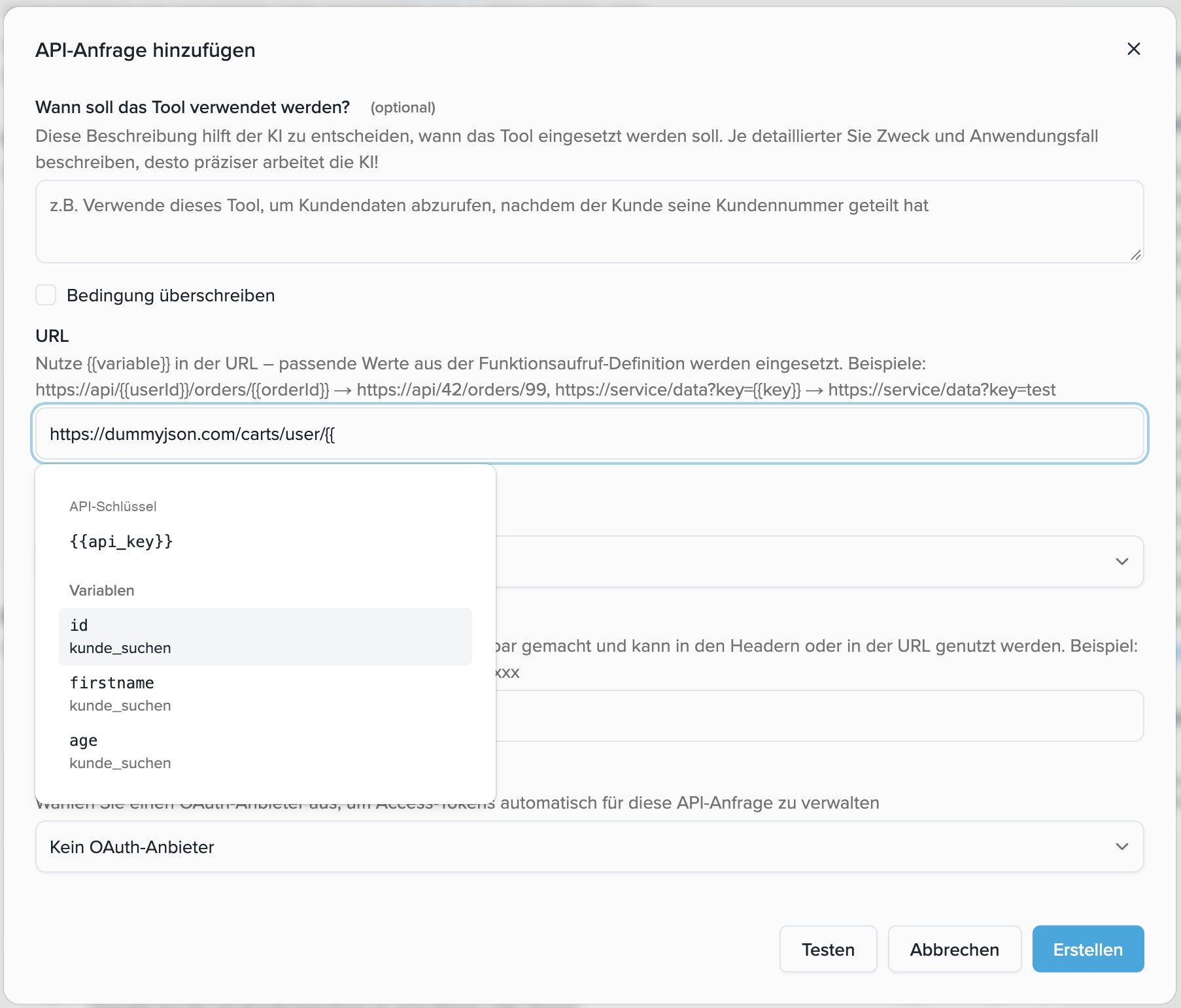

Variable dropdown when typing two curly braces

Test a chained request

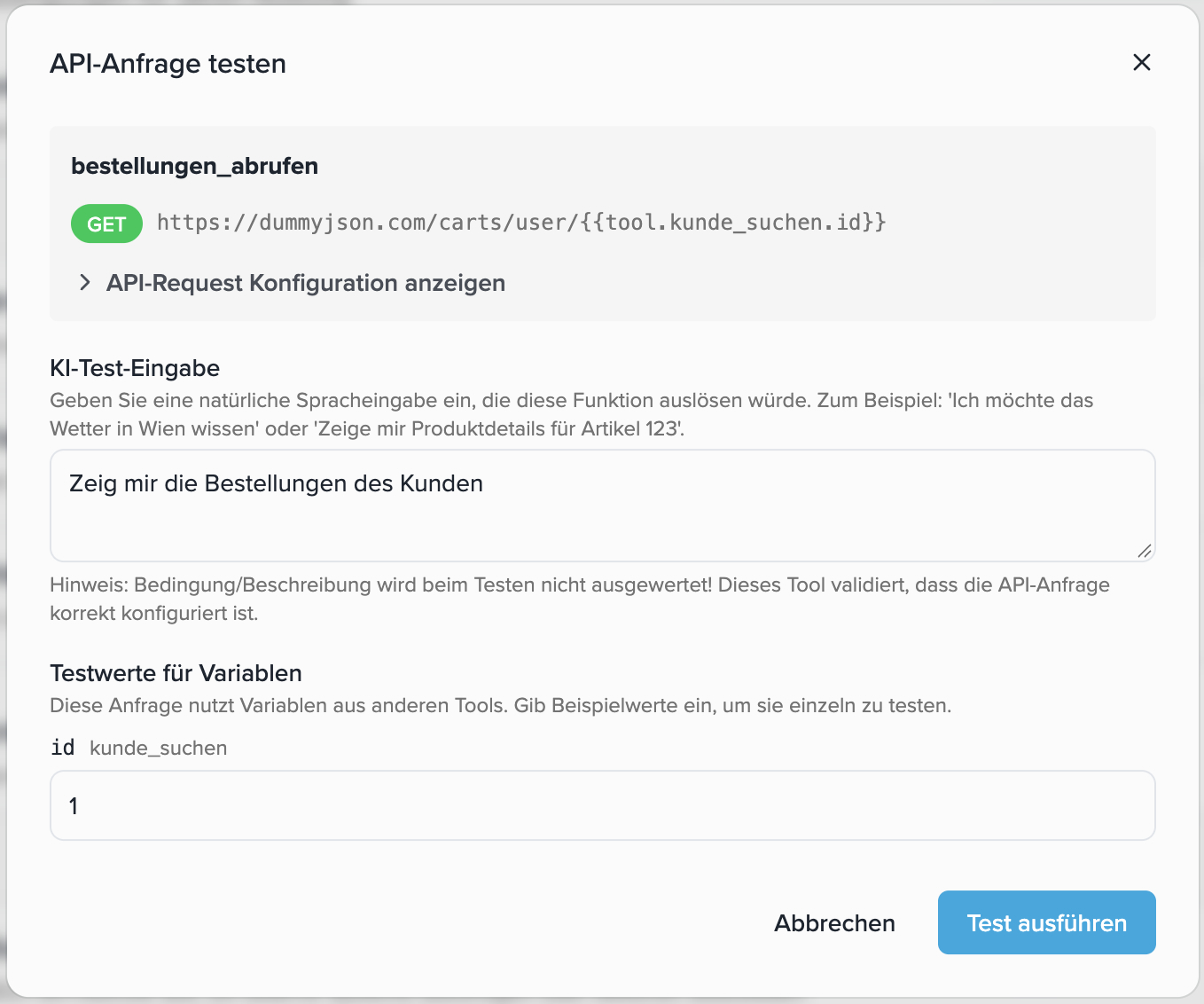

If a request uses variables from other tools, enter a sample value under “Testwerte für Variablen” when testing, so you can test the request on its own — without a real call.

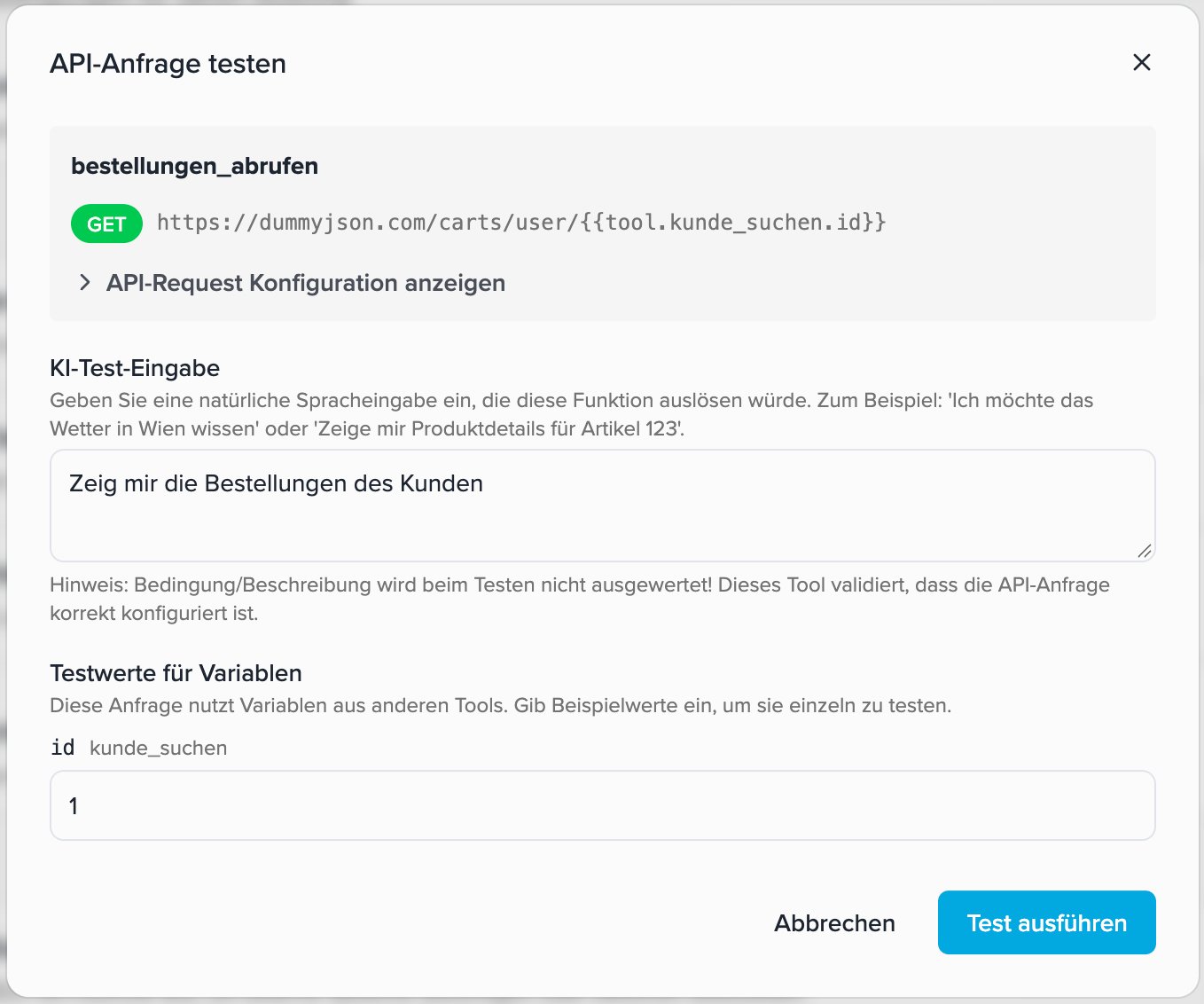

Test values for variables in the test dialog

Variables are resolved server-side and inserted directly into the outgoing request — the value never passes through the AI. This is reliable and also safe for sensitive values such as tokens, which the AI might otherwise corrupt.

Where you can use variables: in the URL, headers and fixed parameters (request body), and in post-processing (email/SMS templates) — typing {{ opens a dropdown everywhere. Not yet available in call forwarding or the prompt/greeting, since those are resolved before any tool runs. When a value is unavailable: if the source tool hasn’t run yet in the conversation, the variable is sent empty (or the default value, if set). The conversation view shows, on the relevant tool call, that a variable was unavailable.

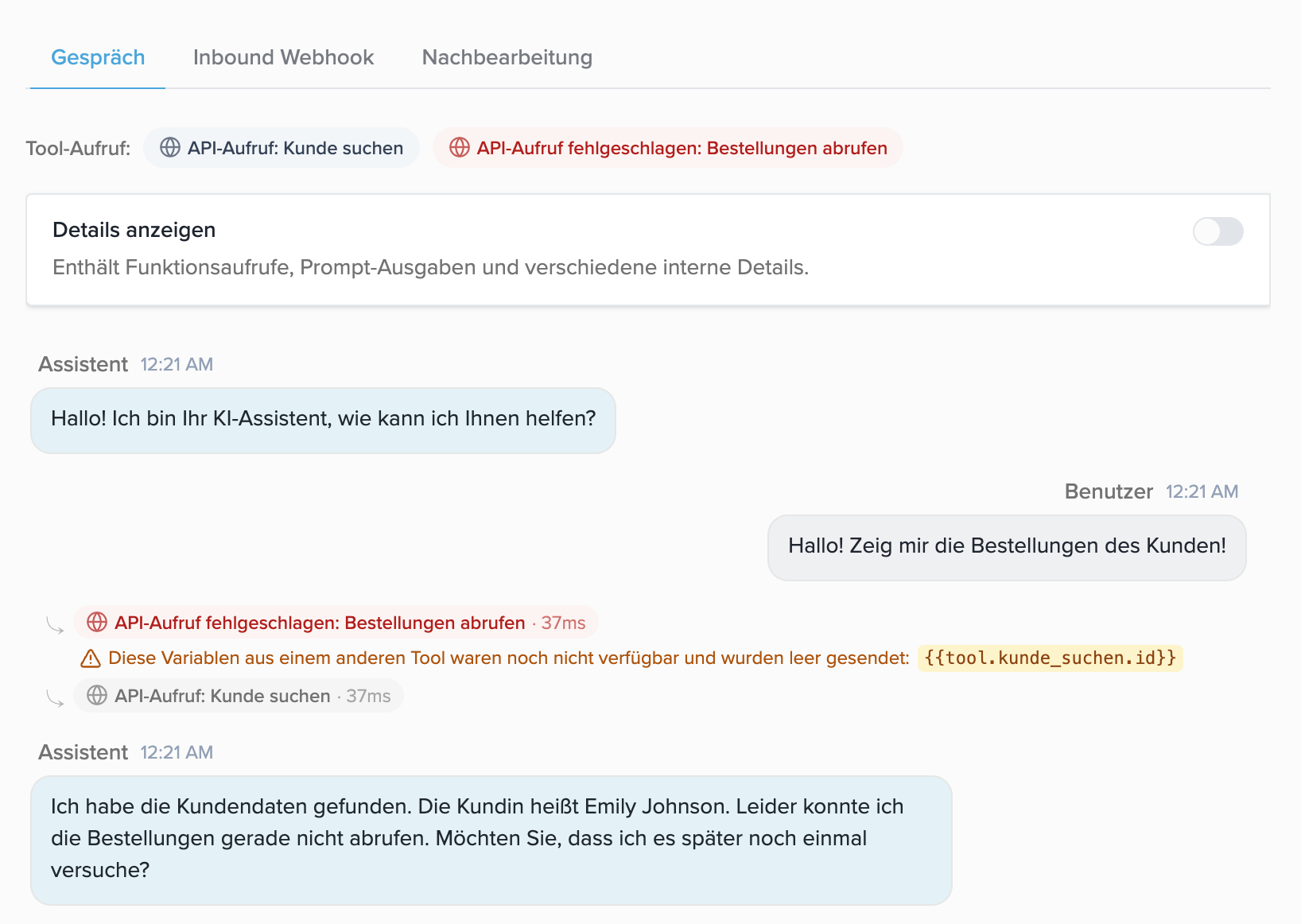

Conversation view note: a variable was unavailable

Say before

An optional message the AI assistant says to the user before the API request is executed. For example: “Ich erstelle jetzt Ihre Bestellung…” or “Einen Moment, ich rufe die Produktinformationen ab…”

Example: GET request without dynamic parameters

Some API calls don’t need any parameters from the AI — for example “Get all products”. In this case, a function definition is still required so that the AI triggers the API request.

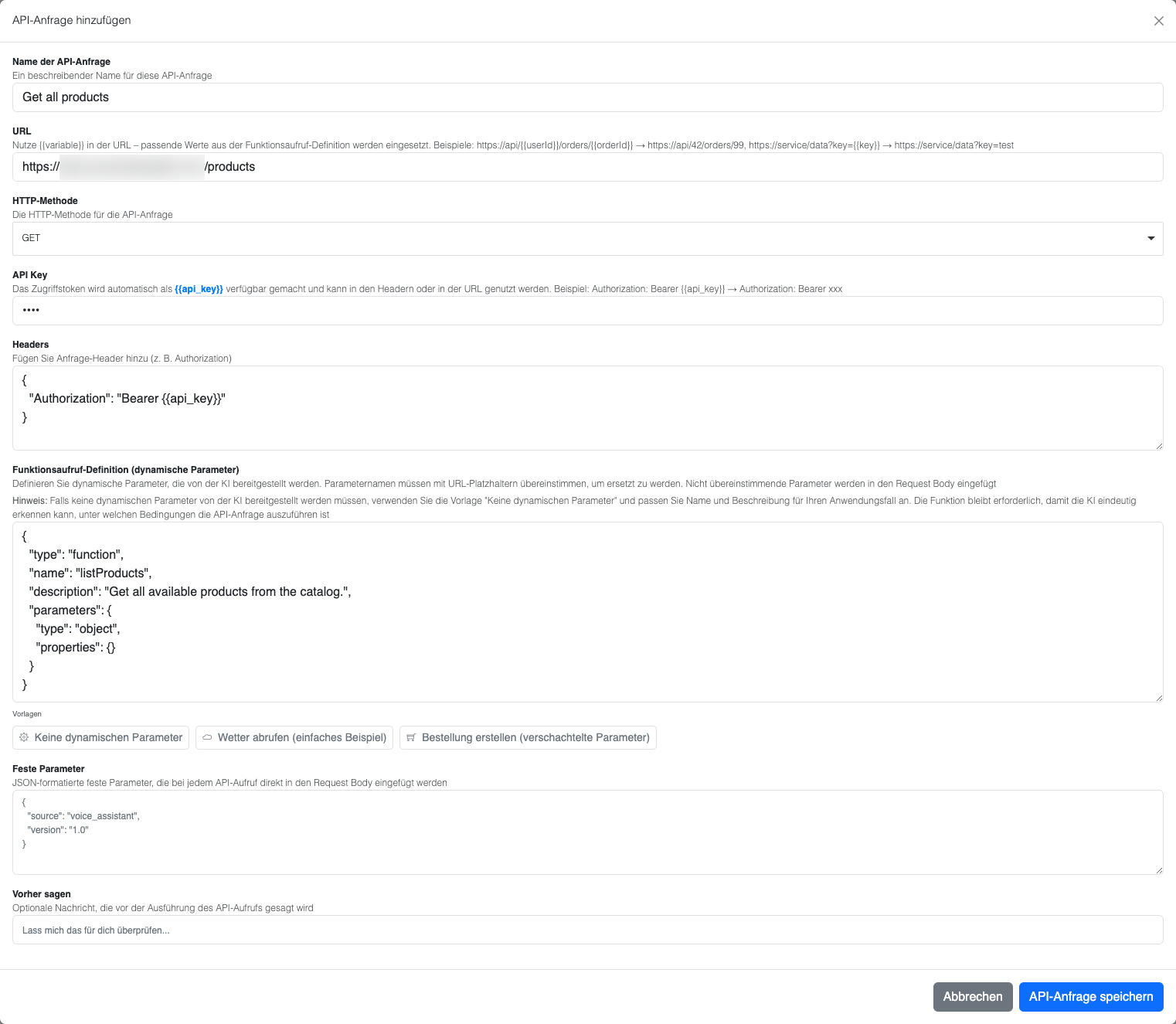

API Request Configuration for GET without parameters

Configuration for “Get all products”

API request name: “Get all products”
URL: https://example.proxy.beeceptor.com/products (example test endpoint)
HTTP method: GET
API key: (empty or your API key)
Headers: Standard GET headers

Function definition without parameters

Click “No dynamic parameters” to get a template:

{
  "type": "function",
  "name": "listProducts",
  "description": "Get all available products from the catalog",
  "parameters": {
    "type": "object",
    "properties": {}
  }
}

Important:

A meaningful function name and description are crucial, because the AI needs to understand when to call the function
Add explicit instructions in the user prompt if the AI has trouble
The empty properties: {} is required for a valid function definition

Resulting HTTP request

Based on the configuration above, the following HTTP request is created:

GET https://example.proxy.beeceptor.com/products
Content-Type: application/json

Explanation:

URL: Direct URL without placeholder substitutions
Headers: GET headers with Bearer API token
Parameters: No dynamic parameters required

How the final request is built

URL: Placeholders are replaced with dynamic function parameters
Headers: {{api_key}} is replaced with the API key, other placeholders with dynamic parameter values
Body: Combination of fixed parameters + dynamic parameters that don’t match any placeholder

Example of the final HTTP request

Based on the parameters above, the following HTTP request is created:

POST https://api.shop.com/orders/user123
Authorization: Bearer YOUR_API_KEY_HERE
Content-Type: application/json

{
  "storeId": "STORE_123",
  "paymentMethod": "credit_card",
  "currency": "USD",
  "orderDetails": {
    "product": "Wireless Headphones",
    "quantity": 2
  }
}

Explanation:

URL: {{userId}} was replaced with “user123”
Headers: {{api_key}} was replaced with your actual API key
Body: Contains both fixed parameters (storeId, paymentMethod, currency) and dynamic parameters (orderDetails)
